AC220SADK |
||

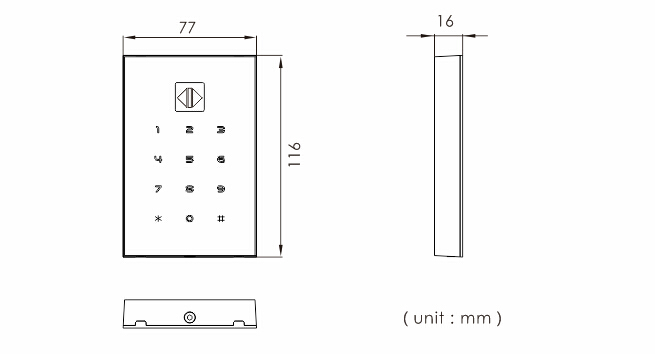

| Size: | 72*111*16 mm | |
| NW: | 130g | |
| Views: | 3714 | |
More Images:
.jpg)
.jpg)
- Description
- Technical Data
- Product Views

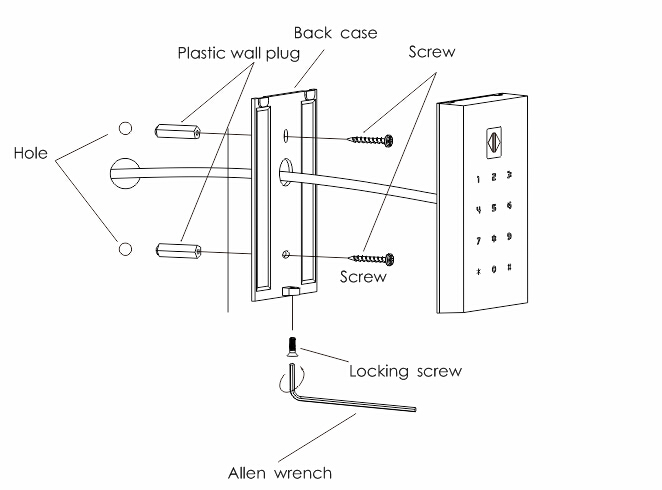

- Installation
Sealed with epoxy

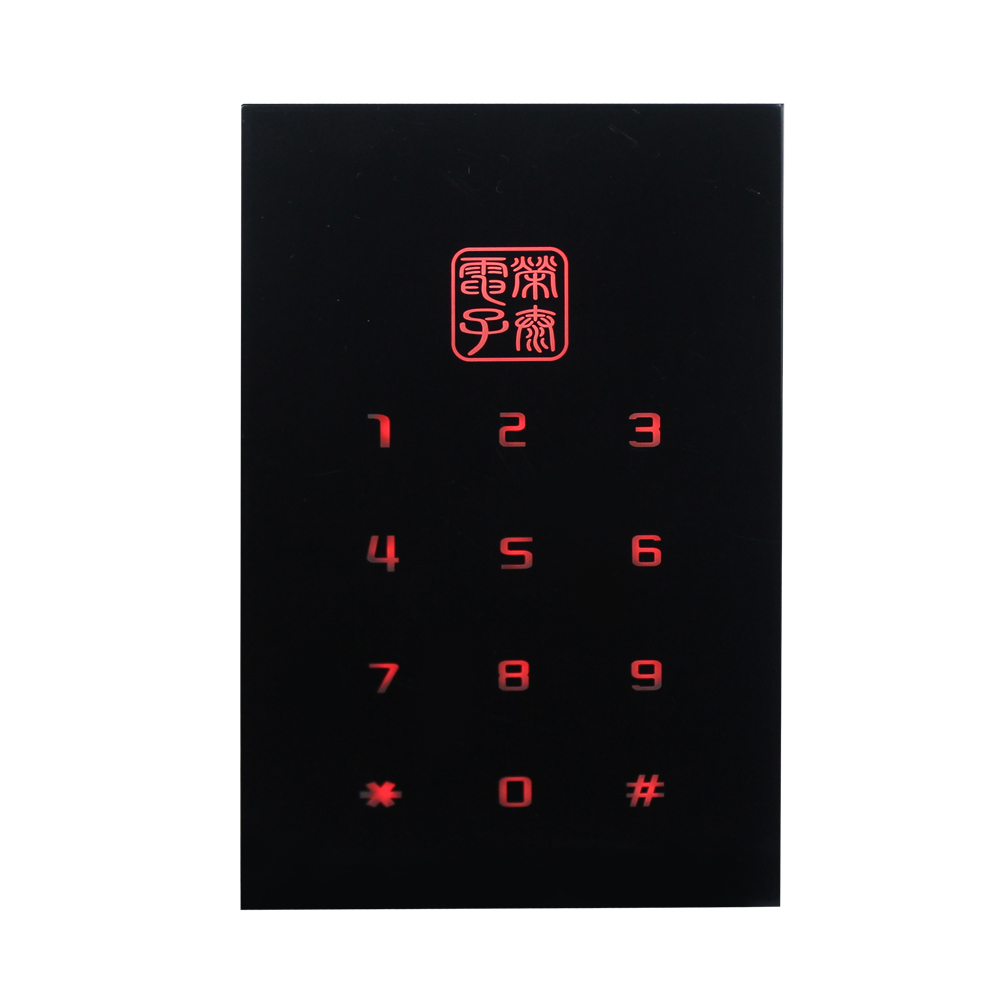

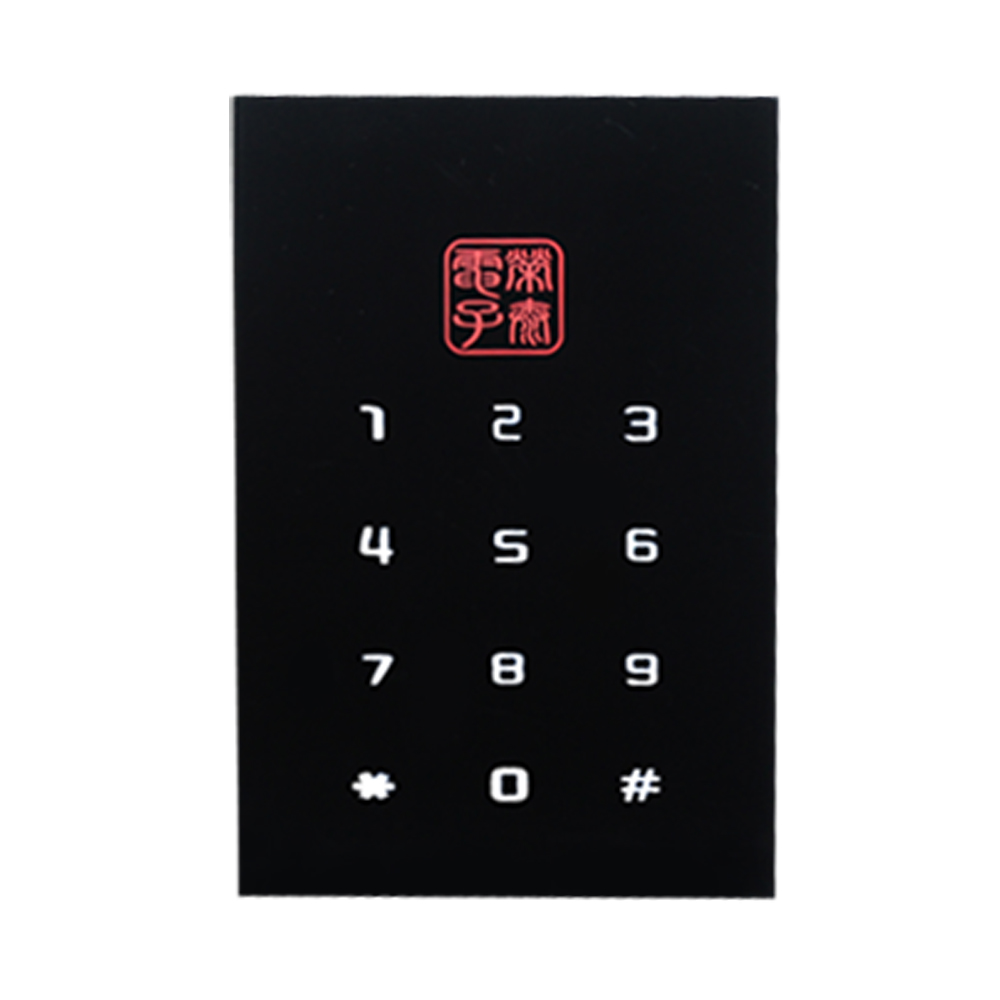

3 colors of backlight option: red, green, white
Induction type ID card reader
Stand alone access
Voltage:12VDC
Quiescent current:<30 mA
Dynamic current:<85 mA
Content:1000pcs ID cards and 1000 passwords
Induction Distance: =5CM(Standard card)
Transmission Distance: 50M (Max)
Dimension:111mm*72mm*16mm
Line length: 30 cm
Compatible card: EM ID Card
Working Temperature:-20 °C~ 60 °C
Working Humidity:< 95%
3 colors of backlight option: red, green, white
Induction type ID card reader
Stand alone access
Voltage:12VDC
Quiescent current:<30 mA
Dynamic current:<85 mA
Content:1000pcs ID cards and 1000 passwords
Induction Distance: =5CM(Standard card)
Transmission Distance: 50M (Max)
Dimension:111mm*72mm*16mm
Line length: 30 cm
Compatible card: EM ID Card
Working Temperature:-20 °C~ 60 °C
Working Humidity:< 95%
| Material | Plastic housing |
| Working Temperature |
-30°C~70°C |
| Waterproof rating | IP65 |
|
RH |
=95% |
| Working voltage |
12-15 VAC or VDC |
|
Standby current |
=30mA |
|
Working current |
=80mA |
|
Application card mode |
EM ID Card |
| Dimension | 72*111*16 mm |
|
Effective distance |
5cm |
|
Capacity |
1000pcs |
