Size: 76*120*22 mm
NW: 600g
Views: 2758

More Images:

  • Description
  • Technical Data

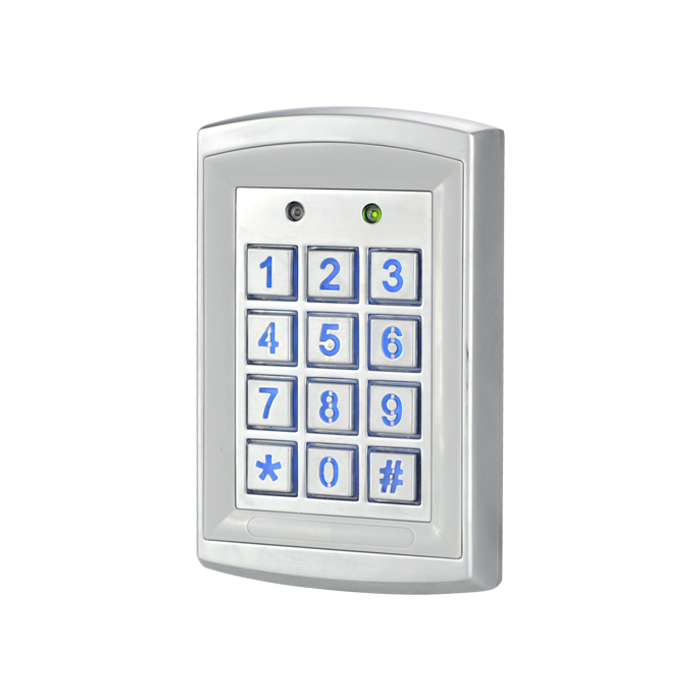

  • Product Views

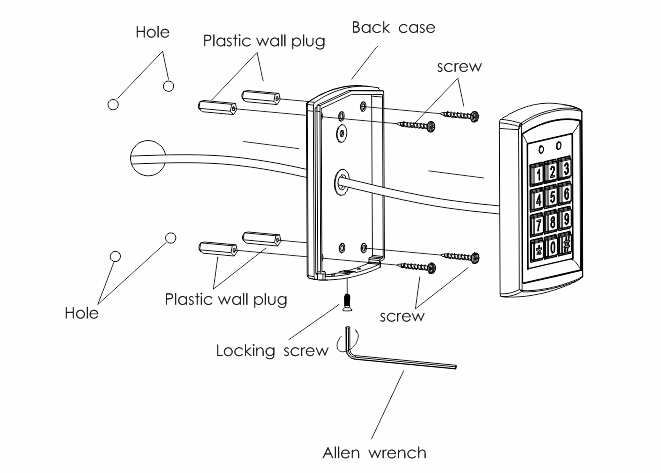

  • Installation

A. Epoxy sealed

B. Vandal resistant

C. Die-cast Aluminum

D. Frequency: EM125KHz

E. 2-6 digits pins by programme

F. 12 digits backlight keypad

G. Operation Voltage: 12 - 24 VAC or VDC

H.  2 relays output  NO / COM / NC and Speaker output.

I. Strike time: 0 to 99 seconds

J. Capacity: Zone1, 1000 codes or cards, or combined

                       Zone2, 10 codes or cards, or combined

K. 2 LED indicators: Green, Red

L. Operation temperature: -30 degree to 70 degree

M. Installation: Surface mounted

N. Cable length: 1 meter ---14-wire for stand-alone, 16-wire for network

O. Water-proof, Dust-proof: IP66

P.  Colour: Silver

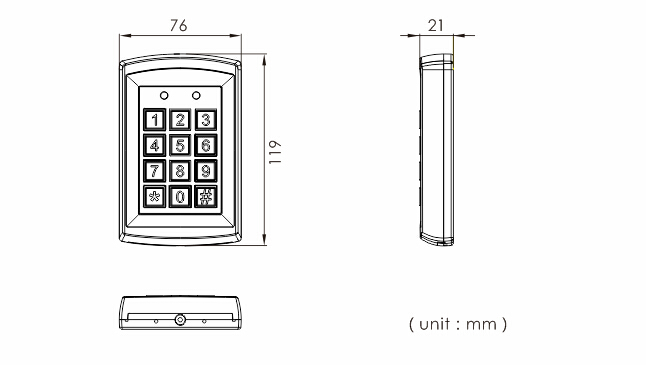

Q. Dimension:  76*120*22 mm



Alumnium alloy

Working Temperature


Waterproof rating




DC input

12-24 VAC or VDC

Standby current


Working current


Application card mode

EM ID Card


76*120*22 mm

Effective distance



1010pcs Codes and cards or combined
